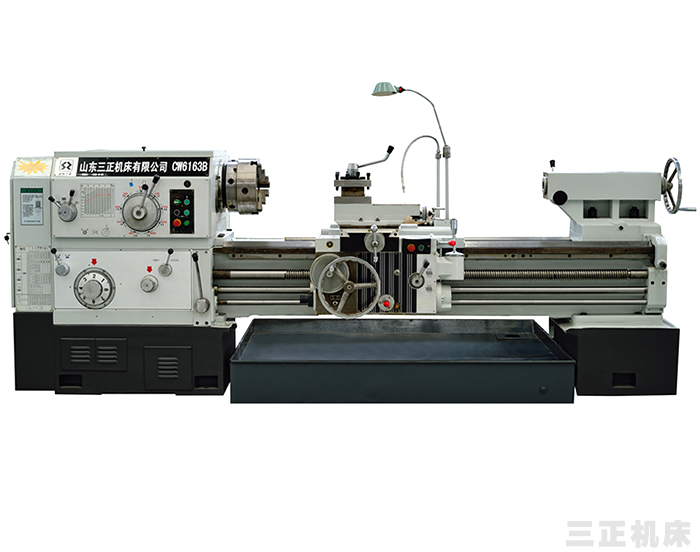

CW6163B

CW6263B

CW6180B

CW6280B

床身導軌寬度 Guideway width

550mm

床身上***大回轉直徑Max.swing over bed

630mm

630mm

800mm

800mm

馬鞍內***大回轉直徑Max.swing in gap

800mm

1000mm

馬鞍有效利用長度Available length in gap

300mm

300mm

***大加工長度 Max. workpiece length

1500mm  3000mmm 4000mmm 5000mmm

刀架上***大回轉直徑 Max.swing over carriage

350mm

350mm

550mm

550mm

主軸內孔直徑 Hole through spindle

Φ105mm

尾座套筒錐度 Taper of the tailstock

莫氏5號

床身導軌淬火硬度Bed quenching hardness

HRC52

床鞍快速移動 Quick travel speed of saddle

 4000mm/min

主軸轉速級數 Number of spindle speed changes

18 steps

主軸轉速范圍 Range of spindle speed changes

8～1000r/min

公制螺紋范圍和種數Range and number of metric thread

1～240mm/50種

英制螺紋范圍和種數 Range and number of whitworth thread

14～1t.p.i（牙/吋）/26種

模數螺紋范圍和種數 Module thread range and number

0.5～120mm/53種

徑節螺紋范圍和種數 Pitch thread range and number

28～1t.p.i（牙/吋）/24種

主電機功率 Power of main motor

11KW

加工工件精度Processing workpiece accuracy

IT7

工件表面粗糙度 Workpiece surface roughness

                 Ra1.6
